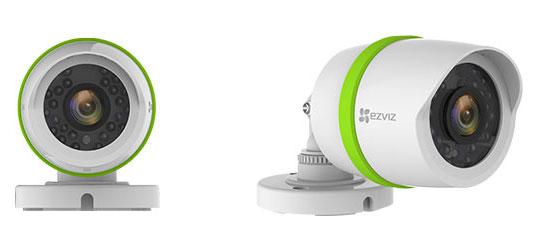

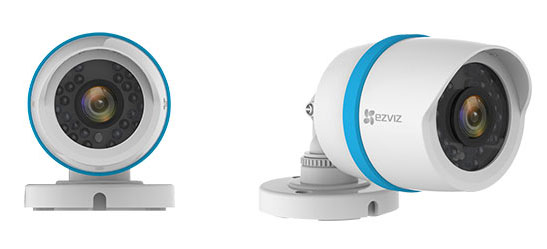

| 1080p Weatherproof PoE Bullet
IP Camer | 1080p Weatherproof Analog
Bullet Camera |
|---|
| Model #CS-C3U-22ER | Model #CS-C3T-2PR |
 |
|
| Image Sensor | 1/3" Progressive Scan
CMOS | Image Sensor | 1/3" Progressive Scan
CMOS |
| Signal System | NTSC | Signal System | NTSC |
| Effective Pixels | 1930(H) x 1088(V) | Effective Pixels | 1930(H) x 1088(V) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0
lux with IR | Min. Illumination | 0.01 Lux @(F1.2, AGC ON), 0
lux with IR |
| Shutter Time | 1/30 s to 1/50,000 s | Shutter Time | 1/30 s to 1/50,000 s |
| Lens | 2.8mm | Lens | 2.8mm |
| Viewing Angle: | Viewing Angle: |
| Horizontal: 91.3° | Horizontal: 91.3° |
| Vertical: 49° | Vertical: 49° |
| Diagonal: 107.5° | Diagonal: 107.5° |
| Lens Mount | M12 | Lens Mount | M12 |
| Angle Adjustment | Pan: 0 - 360°, Tilt: 0
-90°, Rotation: 0 - 360° | Angle Adjustment | Pan: 0 - 360°, Tilt: 0
-90°, Rotation: 0 - 360° |
| Day & Night | ICR | Day & Night | ICR |
| Video Frame Rate | 1080p@30fps | Video Frame Rate | 1080p@30fps |
| HD Video Output | 1 HD output | HD Video Output | 1 HD output |
| S/N Ratio | S/N Ratio | S/N Ratio | More than 52dB |
| General | General |
| Working Temperature | 40°F to 140°F | Working Temperature | 40°F to 140°F |
| (-40°C to 60°C) | (-40°C to 60°C) |
| Humidity | 90% or less
(non-condensing) | Humidity | 90% or less
(non-condensing) |
| Power Supply | 12 VDC ± 15% | Power Supply | 12 VDC ± 15% |
| Power Consumption | Maximum 4W | Power Consumption | Maximum 4W |
| Weather Proof Ratings | IP66 | Weather Proof Ratings | IP66 |
| IR Range | Up to 100ft (30m) night
vision in | IR Range | Up to 100ft (30m) night
vision in |
| ambient light; up to 65ft
(20m) in total darkness | ambient light; up to 65ft
(20m) in total darkness |
| Dimension | Φ2.75 × 6.46 in (Φ70 ×
164.2 mm) | Dimension | Φ2.75 × 6.46 in (Φ70 ×
164.2 mm) |
| Weight | 183.7 g (0.405 lbs) | Weight | 183.7 g (0.405 lbs) |
 |
|

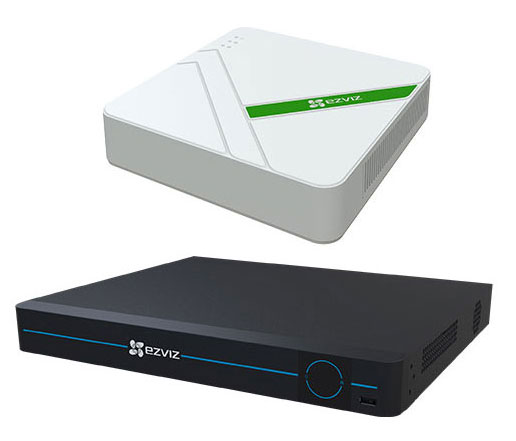

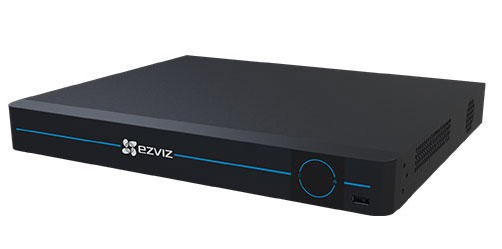

| NVR | DVR |
| Model #CS-X5-104T,
CS-X5-108T(P), CS-X5-108T(P) | Model #CS-X5-104T,
CS-X5-108T(P), CS-X5-108T(P) |
| Video/Audio input | Video/Audio input |
| IP Video Input | 8 Channels | Video compression | H.264 |
| 6 Channels | IP Video Input | 4 Channels, 8 Channels, 16
Channel, BNC interface (1.0Vp-p, 75 Ω) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p,
1kΩ) | Supported camera types | 720P/30, 1080P/30,
CVBS |
| Network | Audio compression | G.711u |
| Incoming bandwidth | 80Mbps | Audio input / Two-way
audio
in | 1-ch, RCA (2.0 Vp-p, 1
KΩ) |
| 160Mbps | Video/Audio output |
| Outgoing bandwidth | 80Mps | HDMI/VGA output | 1921 × 1080p/60Hz |
| Video/Audio output | 1281 × 1024/60Hz |
| Recording resolution | 1080P/720P/4CIF | 1281 × 720/60Hz |
| Frame rate | Main stream: 60 fps(N) | 1025 × 768/60Hz |
| Sub-stream: 60 fps (N) | VGA output | 1920 × 1080 / 60 Hz |
| HDMI/VGA output | 1920 × 1080p/60Hz | 1280 × 1024 / 60 Hz |
| 1600 × 1200/60Hz | 1280 × 720 / 60 Hz |
| 1280 × 1024/60Hz | 1024 × 768 / 60 Hz |
| 1280 × 720/60Hz | Encoding resolution | Main stream:
1080P(15FPS)/720P/4CIF |
| 1024 × 768/60Hz | Sub-stream:
4CIF/VGA/QVGA |
| Audio output | 1-ch, RCA (Linear,
1kΩ) | Frame rate | Main stream: 1/16 fps ~ 15
fps@1080P |
| Decoding | Sub-stream:
4CIF/VGA/QVGA |
| Live view / Playback
resolution | 1080P /720P/
VGA/4CIF/CIF/QVGA | Video bitrate | 4CH: 32 Kbps-4 Mbps |
| Capability | 8-ch@720P, 4-ch@1080P | 8CH: 32 Kbps-4 Mbps |
| 16-ch@4CIF,
12-ch@720P, | 16CH: 32 Kbps-6 Mbps |
| 6-ch@1080P | Audio output | 1-ch, RCA (Linear,
1KΩ) |
| Hard Disk | Audio bitrate | 64 Kbps |
| Capacity | Built-in 2-TB HDD | Dual-stream | Support |
| Built-in 3-TB HDD | Stream type | Video, Video &
Audio |
| External Interface | Synchronous playback | 4 Channels |
| Network interface | 1 RJ-45 10 /100 /1000
Mbps | 8 Channels |
| self-adaptive Ethernet
interface | 16 Channels |
| USB interface | 1 × USB 2.0 and 1 × USB
3.0 | Playback resolution | 1080P / 720P |
| PoE | Hard Disk |
| Interface | 8 independent 100 Mbps
PoE | Capacity | Built-in 1-TB HDD |
| network interfaces | Built-in 2-TB HDD |
| 6 independent 100 Mbps
PoE | Built-in 3-TB HDD |
| network interfaces | External Interface |
| Max. Power | 120W | Network interface | 1; 10M / 100M self-adaptive
, Ethernet interface |
| 200W | Serial interface | 1; standard RS-485 serial
interface, half-duplex |
| Supported Standard | AF and AT | USB port | 2 x USB 2.0 |
| General | General |
| Power supply | 12V DC | Power supply | 12V DC |
| Consumption | ≤15W | Consumption | ≤ 20W, ≤ 25W, ≤ 35W |
| Working temperature | 14 °F to 131 °F ( -10 °C to
+55 °C) | Working temperature | 14 °F ~ 131 °F (-10 °C ~+55
°C) |
| Working humidity | 10 % to 90 % | Working humidity | 10% ~ 90% |
| Dimensions (W × D × H) | 15.0×12.6×1.9 inch | Dimensions (W × D × H) | 4 Channel 7.9×7.9×1.8inch (200×200×45mm) |
| (380×320×48mm) | 8 Channel 11×8.3×1.8inch (280×210×45mm) |
| Weight | 6.6 lb (3kg) | 16 Channel 380×290×48mm (15.0×11.4 ×9inch) |
|
| Weight | 2.2 lb (1kg), 3.6Ib
(1.6kg), 5.5 lb (2.5 kg) |
